소형 밀링 1.5호기 신품 덕주코리아 제공 /
3118-0065
|
|
|
| 연식 |
2024 |
제조사 |
중국 신품 |
구분 |
신품 |
| 상태 |
최상 |
지역 |
경기도 |
희망가격 |
협의 |
|
|
| ★ 제품설명 |
중국 1.5호기 신품 밀링 취급 전문 덕주코리아 문의 010 2845 4417
이미 약 4년전부터 수십대 공급되어 성능과 품질애서 검증이 완료된
기계임
1.5호기 밀링센타 -덕주코리아 문의 010 2845 4417
www.weida-mc.com 중국 웨이다 홈페이지 참조 (밀링기/레디얼기)
1. 신품구입 (국내용/해외공장용)
2. 중고 교체 신품구입상담
3. 기존 사용 1.5호기 밀링 수정보완 처리 상담
4. 각종 특수 부품 별도 구입 상담
5. 1.5호기 밀링 부품 조달 (A/S용도)
중국 공장에 거의 상시 재고 보유 상태 유지 합니다
일반 납기 소요기일 약 15일 내 처리합니다
부담없는 가격으로 공급합니다
1.5호기 밀링에 관한 한 종합써비스 센타로 더욱 더 나은 써비스가
이루어지도록 하고자 합니다
아울러
초소형부터 초대형 밀링기전반 상담문의 바랍니다

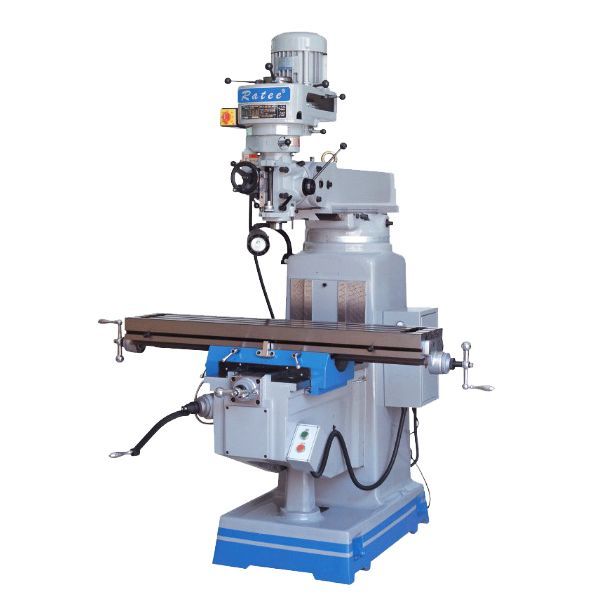

1. 1.5호기 밀링
Products Description
Details Images
Product Paramenters
The main performance characteristics:
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after
fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Specifications
Units
X6325
Table size
mm
1270x254(10”x50”)
Table travel
mm
780/400/400
T slot(number-width-pitch)
mm
3-16-50
Spindle taper
standard:R8 Optional:ISO40
Spindle speed range
rpm
standard:16 steps
50HZ:65-4500 60HZ:80-5440
optional（variable）65-4000
Spindle travel
mm
127
Spindle feed range
mm
0.04,0.08,0.15 (3 steps)
Distance between spindle nose and table surface
mm
90-510
Distance between spindle axis and table surface
mm
-
Main motor power
kw
2.2
Head rotation (left - right )
°
±90°
Head rotation (front - rear)
°
±45°
Weight
kg
1400
Overall dimension
mm
1550x1650x2250
Application:
1. Robust construction and heavy duty design.
2. The machine body is made of Meehanite cast iron
3. The milling head is made of SCM-21.Imported from Taiwan.
4. The milling head can swing 90° right and left side,45° front and back side.
5. The working table and guide rail are heating treated and precision grinding, ensure the machine has high rigidity and high precision
6. DRO and dividing head are for option.
Product Description
Item
Unit
X6325
X6325A
X6325B
X6325C
X6325D
Table size
mm
254x1270 (10"x50") / 254x1370 (10"x54")
Longitudinal travel
mm
850 / 950
Cross travel
mm
380
380
400
400
400
Vertical travel
mm
400
400
400
400
400
T-slot
3x16
3x16
3x16
3x16
3x16
Distance from spindle nose to table
mm
0-400
0-400
0-400
0-400
0-400
Ram Travel
mm
470
470
470
470
470
Spindle taper
Standard: R8; Optional: ISO30/ISO40
ISO40
Spindle travel
mm
127
127
127
127
127
Spindle speed
Rpm
Standard: 16-steps, 50Hz 66-4540; 60Hz 80-5440
Optional: Variable 60-4200
Variable 60-3600
Spindle feed
3-steps: 0.04/0.08/0.15 mm/rev
Main motor
kw
2.25/3HP
2.25/3HP
2.25/3HP
3.75/5HP
3.75/5HP
Head Swivel (Right-Left)
90°
90°
90°
90°
90°
Head Swivel (Front-Back)
45°
45°
45°
——
45°
Dimension
mm
1516x1550x2080
Weight
kg
1450
1280
1320
1490
1490
The Differences Between the X6325 Models
Model
Guideway
Milling Head
X6325
X axis dovetail guideway, Y/Z axis rectangular guideway
3HP
Radial milling head (Right-left & Front-back)
X6325A
X/Y/Z axis dovetail guideway
3HP
Radial milling head (Right-left & Front-back)
X6325B
X/Z axis dovetail guideway, Y axis rectangular guideway
3HP
Radial milling head (Right-left & Front-back)
X6325C
X axis dovetail guideway, Y/Z axis rectangular guideway
5HP
Radial milling head (Right-left)
X6325D
X axis dovetail guideway, Y/Z axis rectangular guideway
5HP
Radial milling head (Right-left & Front-back)
X6332 Accessories
Standard Accessories：
-Horizontal Arbor
-Draw Bar
-Double-Ended Wrench
-Inner Hexagonal Wrench
-Milling Chuck
-Automatic Lubrication
-Cooling system
-Halogen Work Lamp
-Spindle Protection
-Metal Handles
Optional Accessories:
-3-axis Digital Readout
-Dividing Head
-Clamping Kits
-Machine Vice
DAESANG MACHINE DEZHOU KOREA CORP. 덕주코리아 zip 150-961 #202 of 4 unit, 247, 1-ga, yangpyeong-dong, yeongdeungpo-gu,seoul, korea TEL:82-2-2068-3312 FAX:82-2-2068-3313 M:010-2845-4417 E-MAIL :sksea99@hanmail.net BLOG : http://blog.daum.net/sksea99 lathe www.dzjc.com / grinder www..sunnyfreeport.com
Model
X6325 Turret Milling Machine
Table size(mm)
1270X254
Long travel(mm)
780
Cross travel(mm)
400
Vertical travel(mm)
420
T-slot No. and size
3x16
Ram travel(mm)
500
Distance from spindle nose to table surface(mm)
0-350
Spindle hole taper
R8/NT30
Max tapping
M16
Maxi Drilling diameter
50
Spindle travel(mm)
127
Spindle speed
Standard:16steps Shiftgrade:60HZ:80-5440
Auto quill feed
Three steps: 0.04/0.08/0.15 mm/revolution
Spindle power
2.2KW/3HP
Head swivel
90°
Head tilting
45°
G.W./N.W. (kg)
1050/1000
DAESANG MACHINE DEZHOU KOREA CORP. 덕주코리아 zip 150-961 #202 of 4 unit, 247, 1-ga, yangpyeong-dong, yeongdeungpo-gu,seoul, korea TEL:82-2-2068-3312 FAX:82-2-2068-3313 M:010-2845-4417 E-MAIL :sksea99@hanmail.net BLOG : http://blog.daum.net/sksea99 lathe www.dzjc.com / grinder www..sunnyfreeport.com
* 제품 주소 : https://me2.do/GmVX11tA
|
|
|
