분쇄기 칼날연마기 중국산 신품 덕주코리아 제공 / 3113-0069
연식 2024 제조사 중국 구분 신품
상태 보통 지역 서울특별시 희망가격
★ 제품설명


각종 소형연마기

덕주코리아 취급하는 소형 연마기

1.칼날연마기

2.평면연마기

3.공구연마기


기타 각종 연마기 문의 시 상세 정밀자료 바로바로 제공합니다

문의 덕주코리아 010 2845 4417

문의시 귀사 명함(이메일주소 포함) 제공 바랍니다
1.칼날연마기 모델 MFD400

manual knife grinder

Specification

1 this is a manual model. You need to push the grinding head moveletf and right

2 the down feed system is manual ,working precision is 0.05mm/wheel

3 the working table use clamping table. It used for planer blade and crusher blade.




Model

MFD400

Motor speed

2800rpm


Max sharpening length

410mm

Motor power

0.5kw


Guide length

600mm

Weight

45kg


Size

740x400x640mm

Stone size

125x32mm




manual planer/ crusher blade knife grinder




2. 평면연마기 MJ7115

INTRODUCTION:

surface grinder 6"*12" surface grinder is designed to grind various horizontal and vertical surfaces of the workpieces by the periphery and end faces of the grinding wheel respectively. It can also grind contoured workpieces with shaped wheel or craftsmanship apparatus. With small dimensions, light wight, smoothly safe operation and convenient maintenance, etc., it can be used in small enterprises, repairing shops, household industry, lab, teaching demonstrations, etc.



surface grinder 6"*12" FEATURES:

1.Integrated grinding head of high quality, high rigidity and accuracy,

2. small size and light weight, easy operation and maintenance,

3. centralized lubrication for oil pump



STANDARD CONFIGURATION

grinding wheel, grinding wheel adaptor,grinding wheel dresser, pad irons, tools, Rolling Guideetc



SPECIAL CONFIGURATION

stand, permanent magnetic chuck, precision flat vise

SPECIFICATIONS Metric Inch
Longitudinal stroke 340mm 14
Lateral stroke 170mm 7
Grinding height 210mm 8
Area of table 152mm×304mm 6×12
Width of T-slot 1-12mm 1-0.47
Cross feed per graduation 0.02mm 0.001
Cross feed per round 2.54mm 0.1
Vertical feeds per graduation 0.025mm 0.001
Vertical feed per round 1.25mm 0.05
Roughness 1.6μm
Grinding wheel 180mm×32mm×13mm
Power of motor 0.55kw
N. W. / G.W.of machine 210/258kg
N. W. / G.W.of stand 30/54kg
Overall dimension of machineL×W×H 930×780×730mm
Case dimension of machineL×W×H 930×780×1480mm
Case dimension of standL×W×H 720×550×550mm

surface grinder 6"*12"





surface grinder 6"*12"





surface grinder 6"*12"



surface grinder 6"*12"





surface grinder 6"*12"




Packaging & Shipping



surface grinder 6"*12"




3. 공구연마기 CUTTERMASTER

technical parameter:


End mill capacity (dia. Of shank x dia. Of edge x length)

50 x 225 x 250mm, 2" x 9" x 10"


Swing over table

245mm, 9-3/4"


Longitudinal travel (X axis)

150mm, 6"


Cross travel of table (Y Axis)

75mm, 3"


Max. Wheel:

125 x 50 x 32mm, 5" x 2" x 1-1/4"


Tilt adjustment for wheelhead

+35° -10°


Air bearing swivel

360°


Air bearing stroke

250mm, 10"


Table infeed graduation

0.02mm, 0.001


Air bearing graduation

6.3MPa


Pipe joint diameter

Z/4" 1


Collet fit for spindle

5C


Parallelism between two tables

0.01/100mm, 0.01/100


Parallelism of sleeve center line to worktable

0.01/100


Motor speed: 2, 800rpm

3, 450/2, 580rpm


Voltage

230V 110V/1 phase


Power

0.25kW 1/3HP


Frequency

50Hz







X6 universal tool and cutter grinder ball nose end mill regrinding machine cutter master
Max. Stroke of air bearing sleeve: 9"
Collect for work table: 5C
T-shaped slot width for table: 12.7mm
Air consumption: >0.63Mpa
Tracheal joints: 1/4"
Turning angle: 360degree
Parallelism of workhole center line to abse surface: 0.015mm
Radius run out of workhole center line(60mm for hole): 0.015mm

X6 universal tool and cutter grinder ball nose end mill regrinding machine cutter masterX6 universal tool and cutter grinder ball nose end mill regrinding machine cutter masterX6 universal tool and cutter grinder ball nose end mill regrinding machine cutter masterX6 universal tool and cutter grinder ball nose end mill regrinding machine cutter masterX6 universal tool and cutter grinder ball nose end mill regrinding machine cutter master




DAESANG MACHINE DEZHOU KOREA CORP. 덕주코리아 zip 150-961 #202 of 4 unit, 247, 1-ga, yangpyeong-dong, yeongdeungpo-gu,seoul, korea TEL:82-2-2068-3312 FAX:82-2-2068-3313 M:010-2845-4417 E-MAIL :sksea99@hanmail.net BLOG : http://blog.daum.net/sksea99lathe www.dzjc.com / grinder www..sunnyfreeport.com






수동/반자동/자동 다양한 기능



​중국 신품 분쇄기 칼날 연마기 상세안내





1. 초소형 탁상형 수동 칼날연마기 *작업대 수동이송형

2. 초소형 탁상형 수동 칼날연마기 *연마석 스핀들헤드 이송(레일)형

3. 스텐드 레일이송형 완전수동형

4. 스텐드 좌우 자동 이송형

5. 좌우이송 자동 상하 조절자동




1. 모델명 CBG206





NEWEEK small crusher knife-grinder planer blade knife sharpener




NEWEEK small crusher knife-grinder planer blade knife sharpener


Model WM 206
Max. sharpening length 650 mm
Max. sharpening width 50 mm
Max. sharpening thickness 5 mm
Angle of grinding blade 37-42 degree
Disc mold 100*20/32*50 mm
Power 550 w
Voltage 220v 50hz
Weight 25 kgs
Dimension 550*290*380 mm+700*140*200 mm

The structure of small crusher knife-grinder planer blade knife sharpener

NEWEEK small crusher knife-grinder planer blade knife sharpener







Main Feature of planer blade knife sharpener

1. The small crusher knife-grinder uses an export standard motor.
2. All cast iron body, more stable in use.
3. The blade sharpener uses a precision calibrated press guide.
4. The knife-grinder uses a white corundum grinding wheel.

NEWEEK small crusher knife-grinder planer blade knife sharpener

NEWEEK small crusher knife-grinder planer blade knife sharpener

NEWEEK small crusher knife-grinder planer blade knife sharpener

NEWEEK small crusher knife-grinder planer blade knife sharpener


Commissioning and operating procedures

This planer blade sharpener is suitable for grinding straight and planer knives.

1. During the knife sharpener's operation, the grinding wheel and the sliding table are adjusted to a certain small angle, so that the front edge of the grinding wheel is in contact with the blade to ensure the grinding quality of the blade.
2. The adjustment of the amount of the knife can be realized by shaking the hand wheel and moving the sliding table seat back and forth.
3. The adjustment of the sharpening angle can be realized by rotating the adjusting wire and adjusting the sliding table.
4. The knife has a protruding amount and can be adjusted with a top wire top knife.
5. After adjusting the above parameters during the sharpening, the blade to be ground is fixed on the tool holder by the pressing wire through the pressure plate, and the grinding operation can be performed by pushing the tool holder left and right

2. CBG 400 manual knife grinder






Specification

1 this is a manual model. You need to push the grinding head moveletf and right

2 the down feed system is manual ,working precision is 0.05mm/wheel

3 the working table use clamping table. It used for planer blade and crusher blade.




Model

MFD400

Motor speed

2800rpm


Max sharpening length

410mm

Motor power

0.5kw


Guide length

600mm

Weight

45kg


Size

740x400x640mm

Stone size

125x32mm

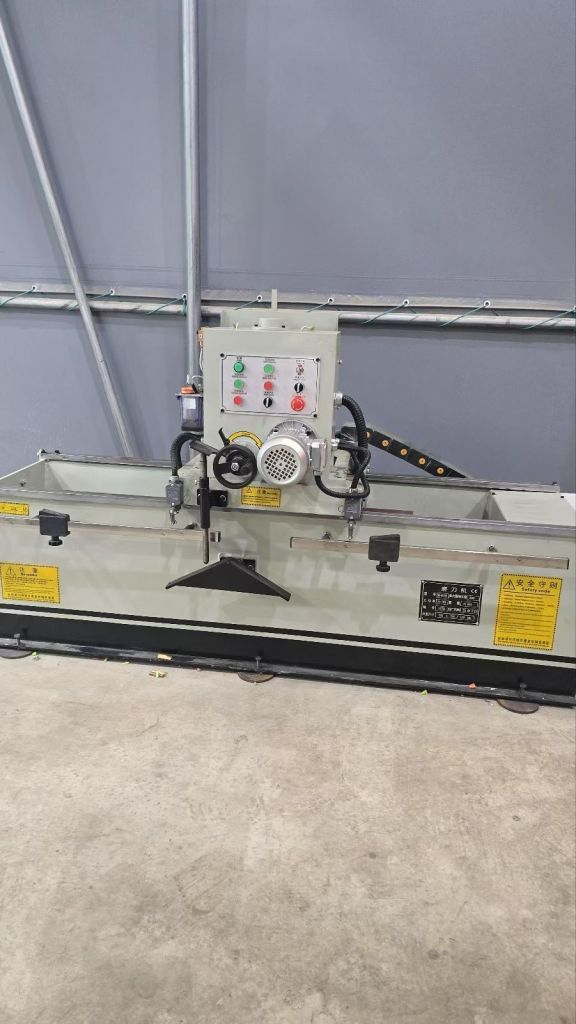

LIVTER 630mm 1000mm automatic flat knife sharpener machine, planer blade grinder, planer blade sharpening machine


manual planer/ crusher blade knife grinder


manual planer/ crusher blade knife grinder

manual planer/ crusher blade knife grinder







manual planer/ crusher blade knife grinder

NEWEEK small crusher knife-grinder planer blade knife sharpener




3.스텐드형 완전수동형


LIVTER 630mm 1000mm automatic flat knife sharpener machine, planer blade grinder, planer blade sharpening machine




* 제품 주소 : https://me2.do/GUDpWhuh
